Cafe series Umbrella - Replace a Canopy Arm/Rib

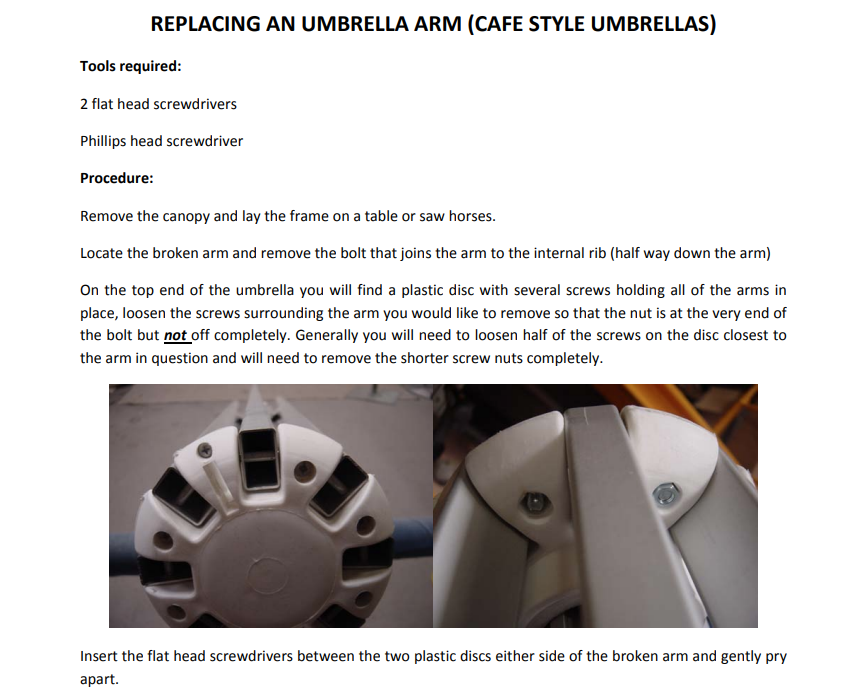

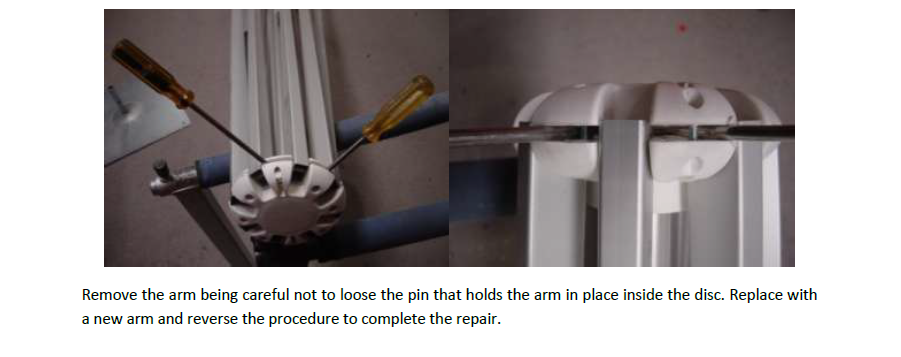

REPLACE A CANOPY ARM/RIB

For a printable version, please download or print the attachment.
