REPAIRING SUPPORT ARMS/STROP

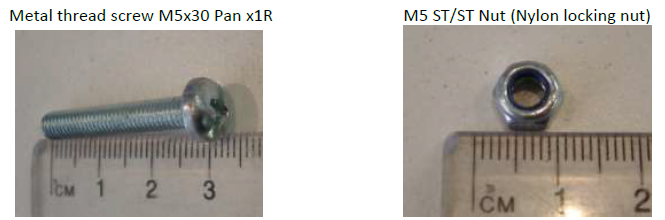

If your umbrella arm has lost its bolt and nut the following parts can be sourced to replace them.
