Eclipse V1/V2 & Aurora - Catching Hub Tube Alteration Guide
Catching Hub Tube Alteration Guide

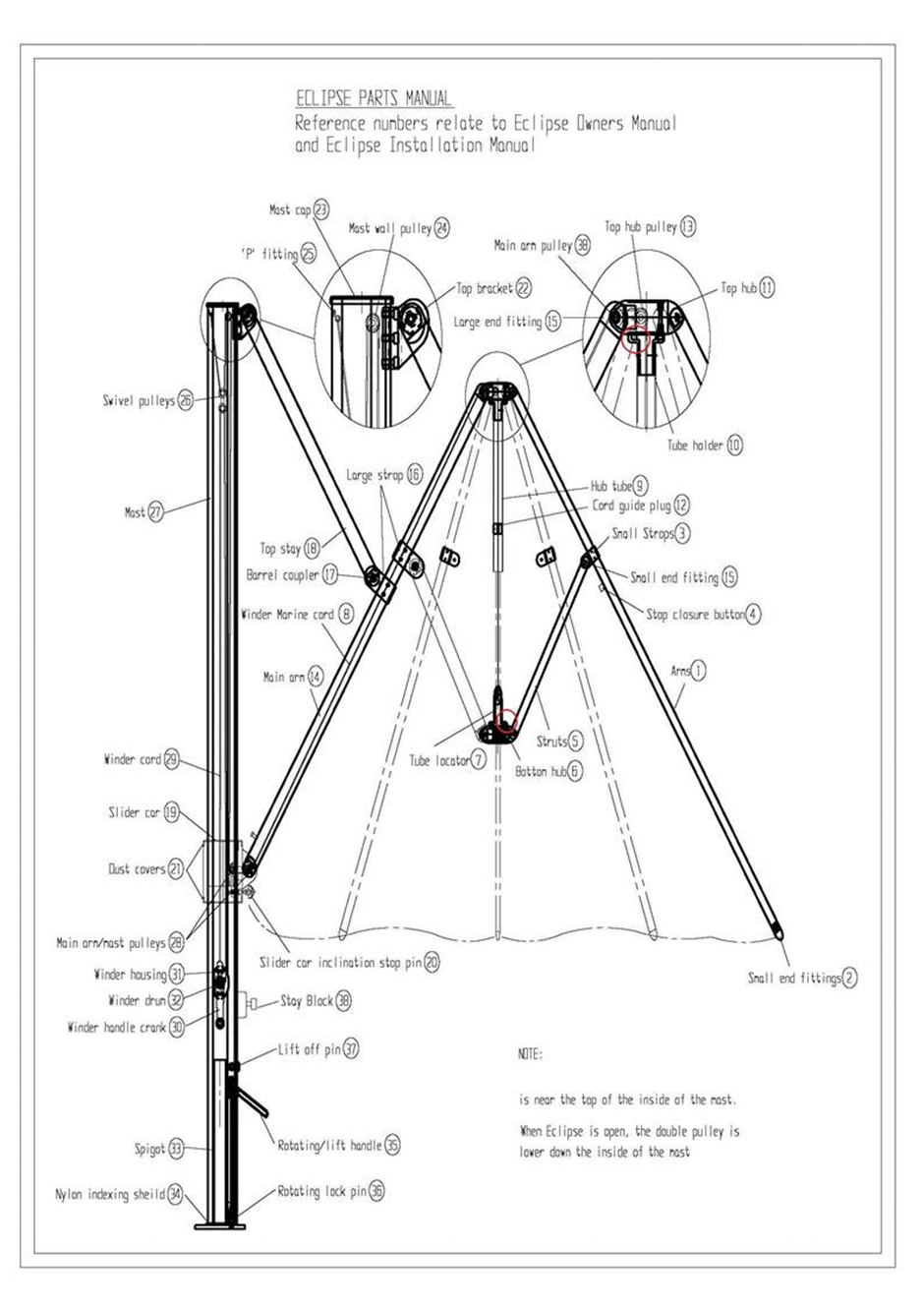

Insert two washers over the bolts in-between the "Top Hub" #11 and the "Hub Tube" #9 at the circled points on one
side only. If the tube still catches insert two more washers between the "Bottom Hub" #6 and "Tube Locator" #7.
You may need to remove any existing plastic damage or barbs on the "Tube Locator". If badly damaged spin the
"Tube Locator" 180 degrees.
This will slightly change the angle of the two parts which will stop the catching problem.
