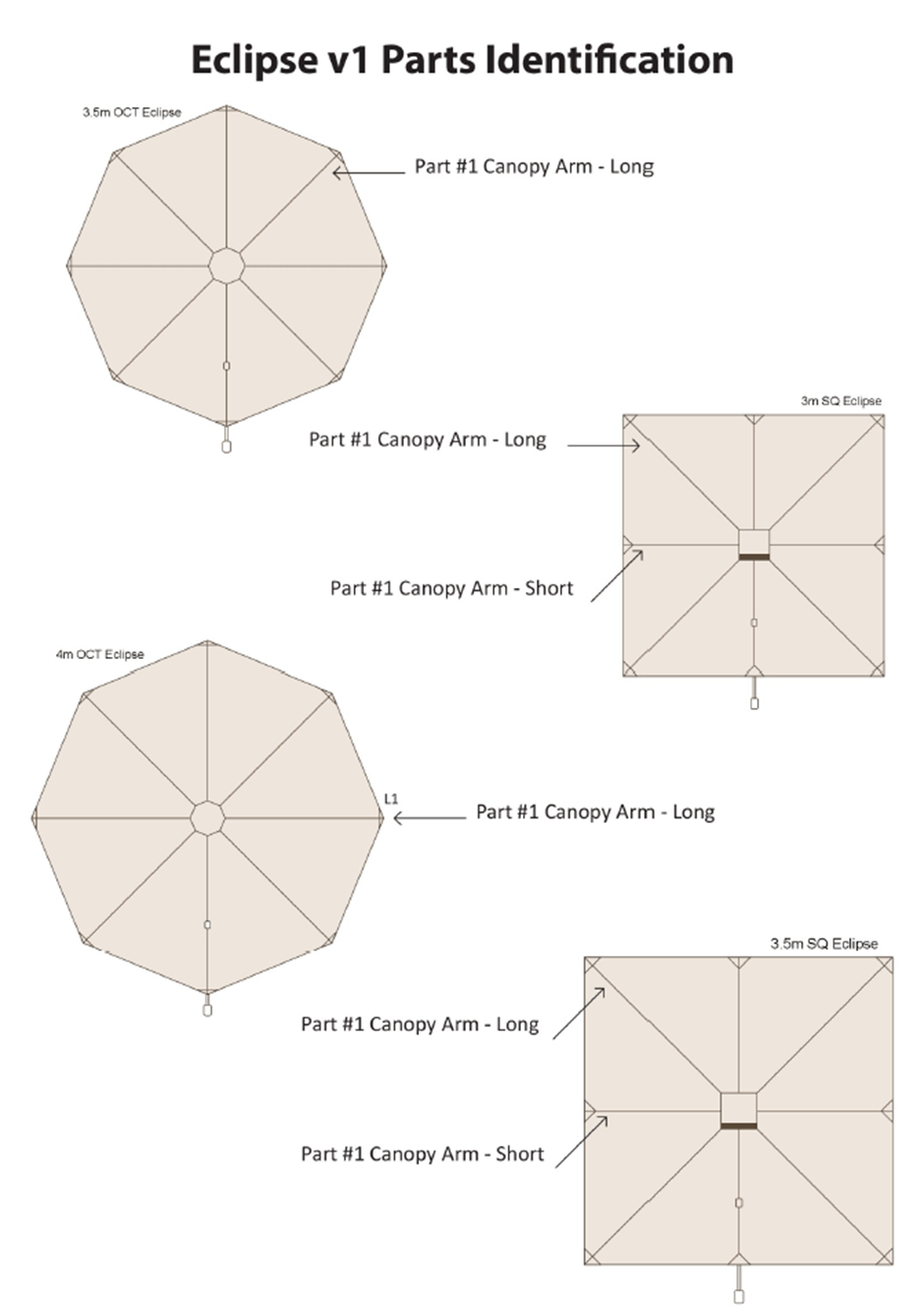

Eclipse V1 - Parts Identification

How to Identify which Version Eclipse umbrella you have

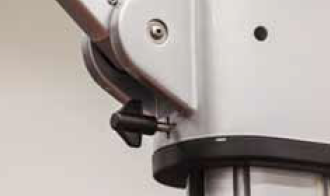

The below picture is of the Eclipse V1 (Version 1) Slider Car and the inclination pin #20

If your Eclipse has this inclination pin, then you have the Eclipse V1 and the below diagram  is for your umbrella.



See attachment for the Printable PDF

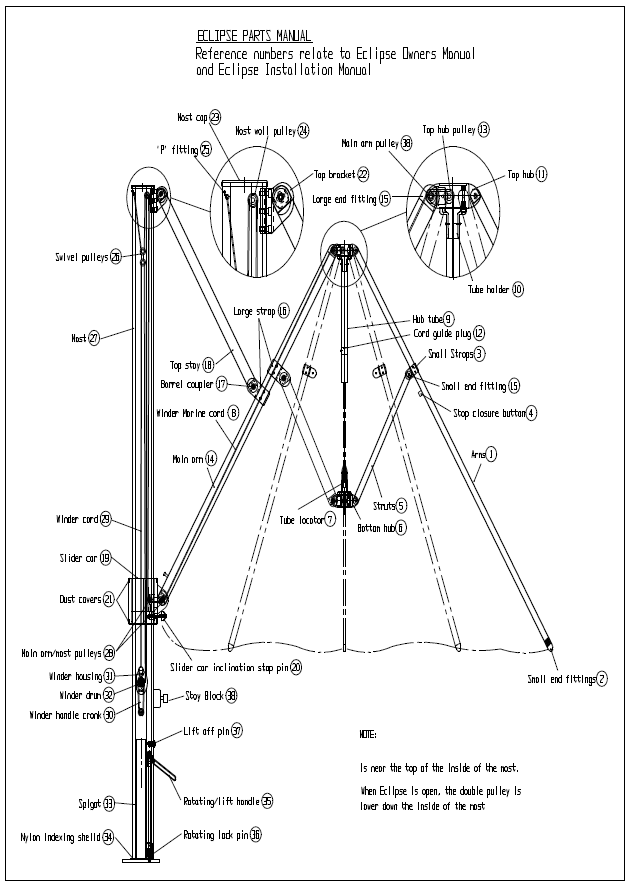

Eclipse V1 Parts Diagram
