Eclipse 3.5m SQ V2

The early version of the arm, was used to make a certain canopy shape (steeper). It is made differently, still remains the same overall length but the strop is in a different position.

The early and current arms are not exchangeable, they make the canopy lopsided if the wrong arm is used.

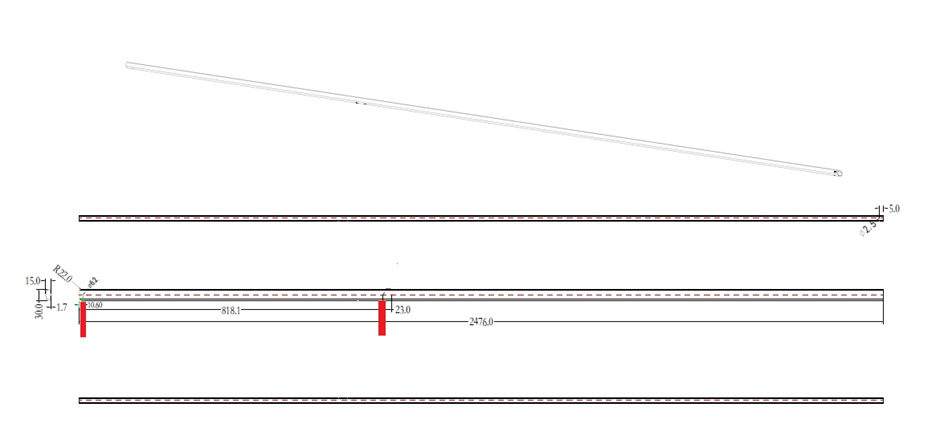

The early version of the arm, not necessarily the version of the umbrella. The measurement to look at would be between the end of the aluminium and the centre of the strop, 818mm.

Long Corner Arm


Short Middle Arm

(The measurement is 852.6mm)



OR

The current version of the arm, not necessarily the version of the umbrella.
Long Corner Arm (the text is small on this but the measurement is 1059.1mm)

Short Middle Arm

(The measure is 1095.6mm)
