Rotation Handle Repair

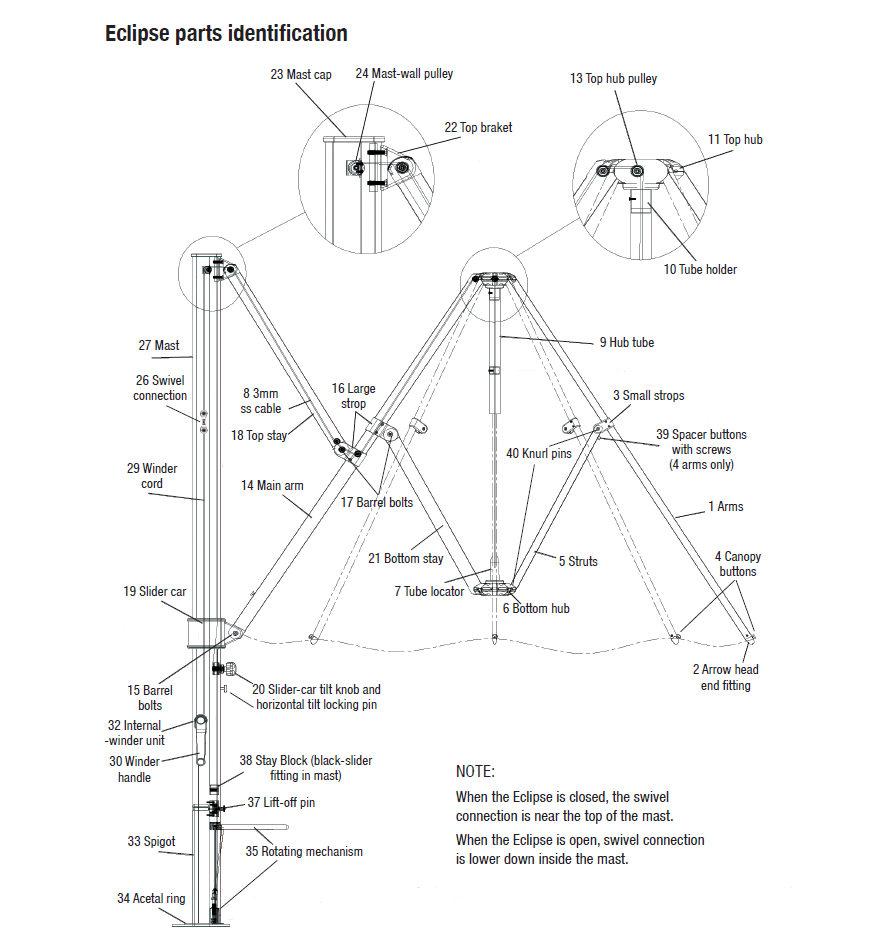

This guide will help you repair your umbrella if you find your rotation handle #35 has separated from the

lower rotation block #36. Begin by neatly folding and securing the canopy against the mast #27 using the

strap. Lie your umbrella on a pair of saw horses or a table, this will give you access the bottom of the mast.

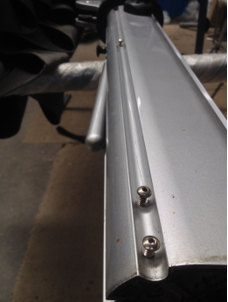

Remove the x6 screws securing the rotation assembly, x3 on each side with either a 4mm allen key or

Philips head screwdriver.



Remove any debris from the mast in the area you are working on then remove both halves of the assembly

by sliding them downwards and out the bottom of the mast. Be careful not to lose the handle pin that

secures the handle section to the small mounting block. When you remove the upper handle section this

small pin becomes loose and may fall out one side.

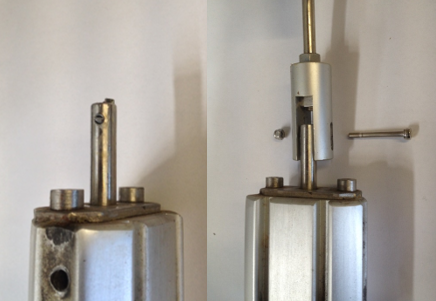

Once you have removed the Rotation block remove any broken fragments of the original broken rolled pin
from the hole of the protruding pin. You can do this by either knocking it out or drilling with a 3mm drill bit.
reversing the procedure above.
