Eclipse - How to Find My Eclipse Umbrella Size
What Size is My Eclipse Umbrella
Our Eclipse Umbrella has seen some updates over the years and therefore some spare parts may vary between their Versions,
below is information on how to find the size of your Eclipse.
If you require parts/service we will need to know these details, please be sure to have them before contacting us, to avoid delays.

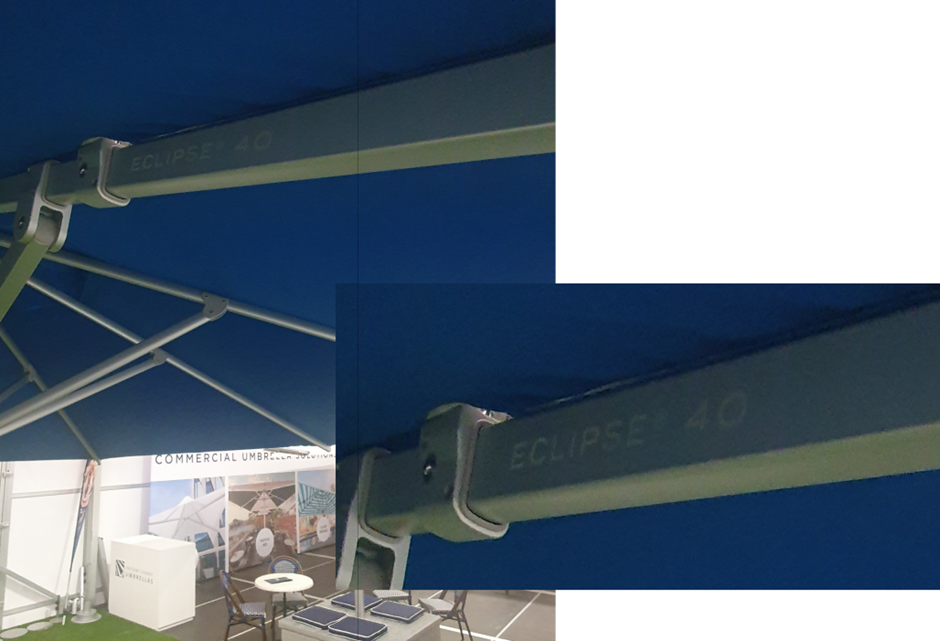

In August 2024 our New Eclipse V4 was born, to find the size of your Eclipse V4 please see below.

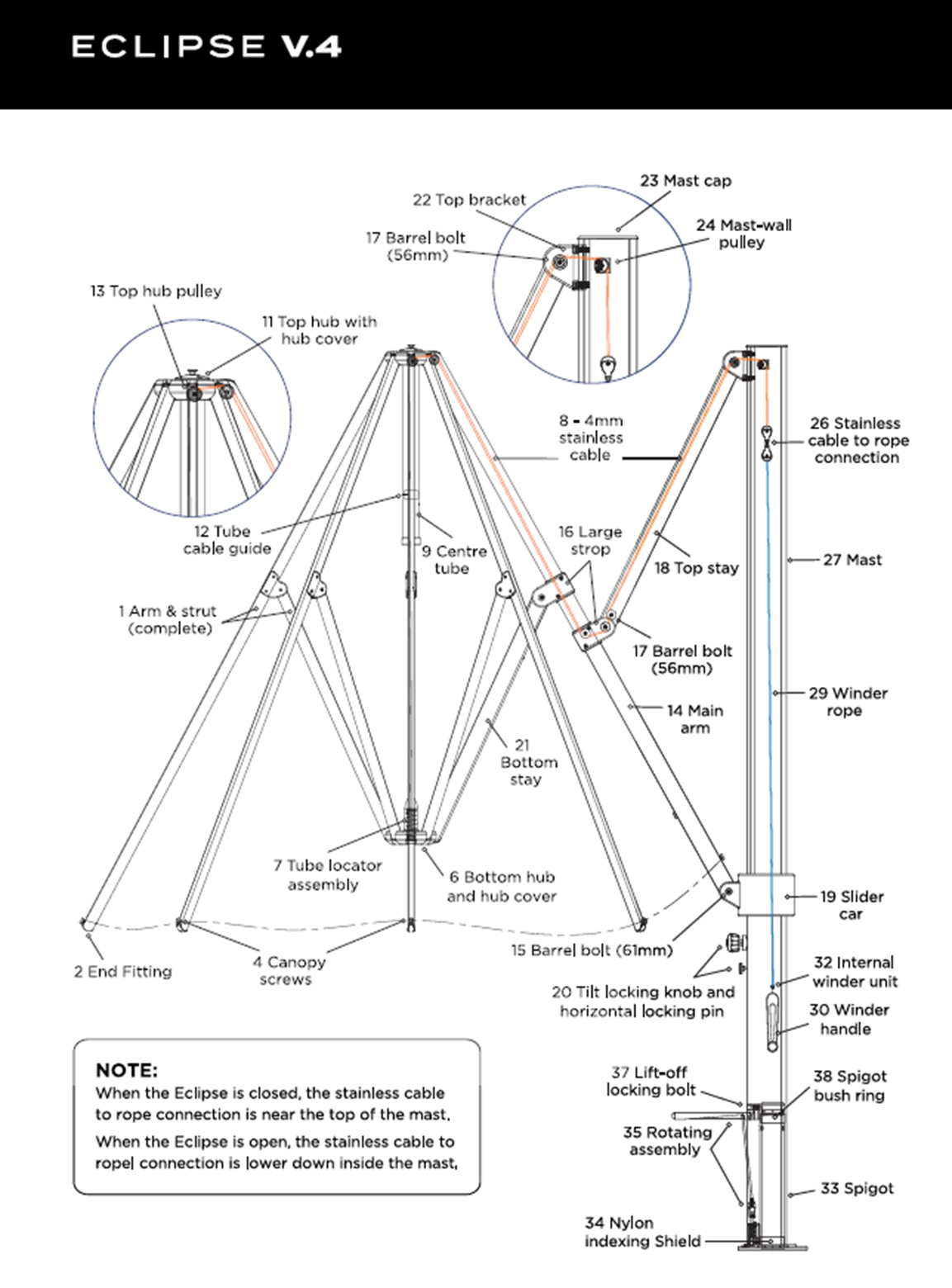

(part #14 see diagram bottom of page, this is the same part number for both Eclipse and Aurora)

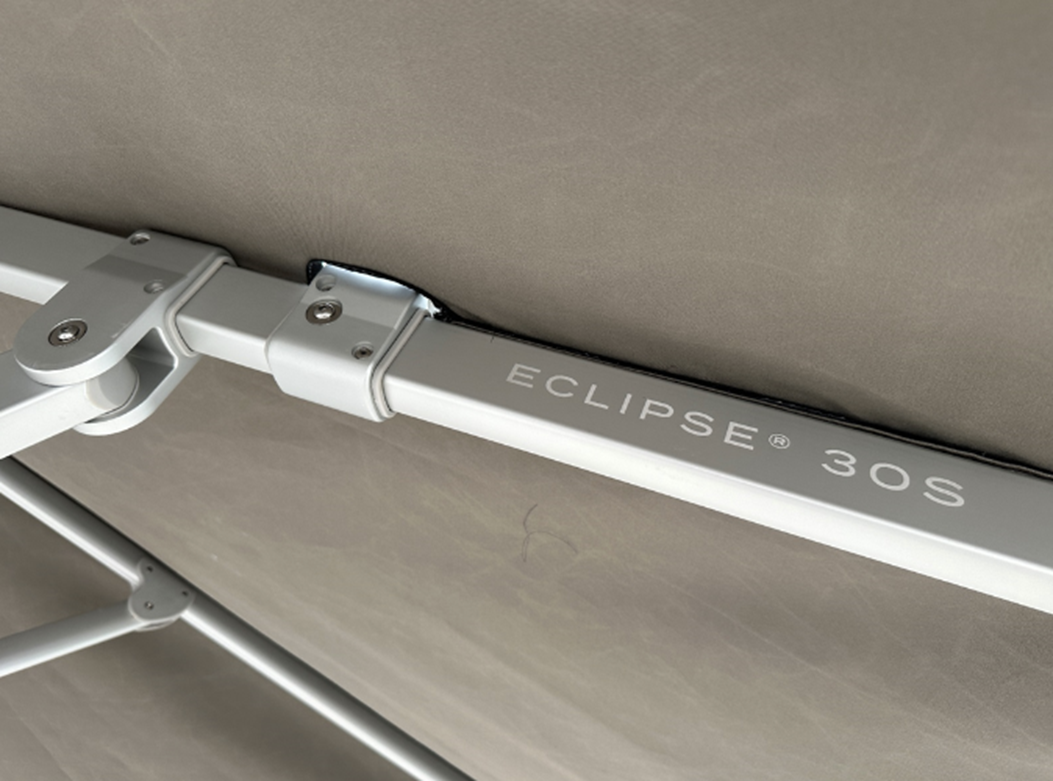

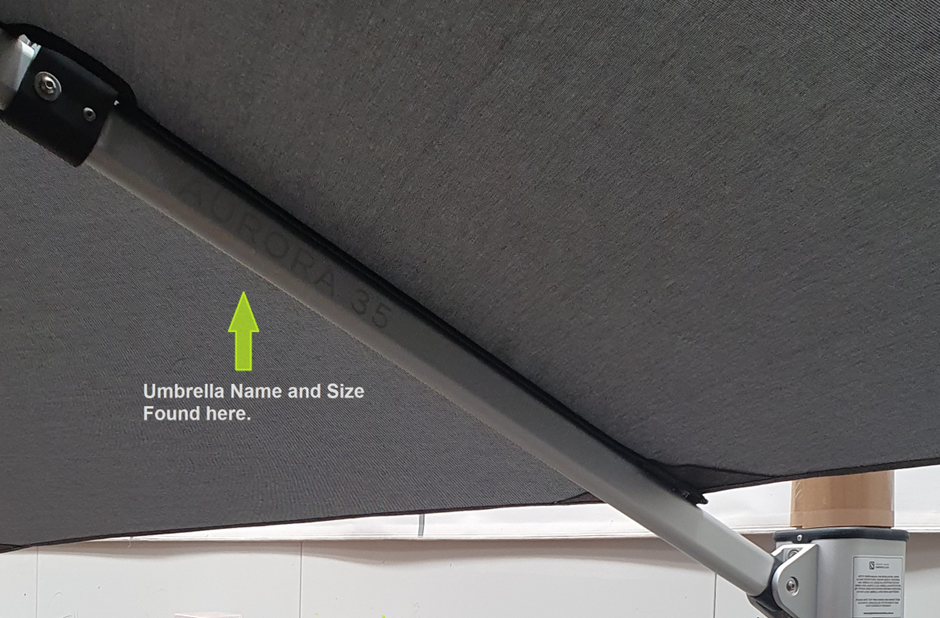

As of August 2023 we relocated the name & size of our Eclipse V2 & Aurora
The New Location is now on the Main Arm
(part #14 see diagram bottom of page, this is the same part number for both Eclipse and Aurora)

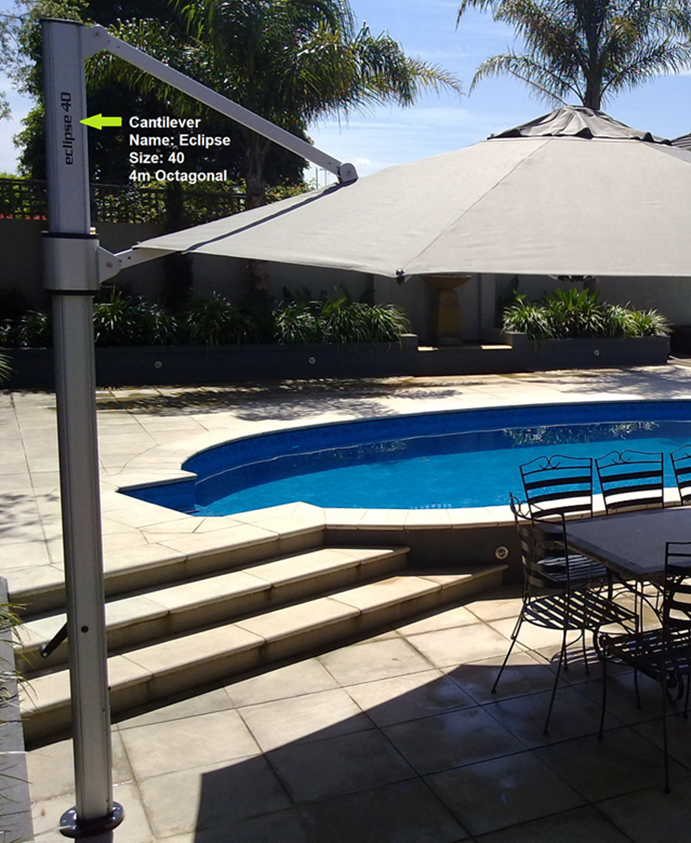

Prior to August 2023 the name and size of our Eclipse V1/V2 & Aurora was at the top of the main post,
please picture below.
