NOVA HD - Spare Parts Diagram

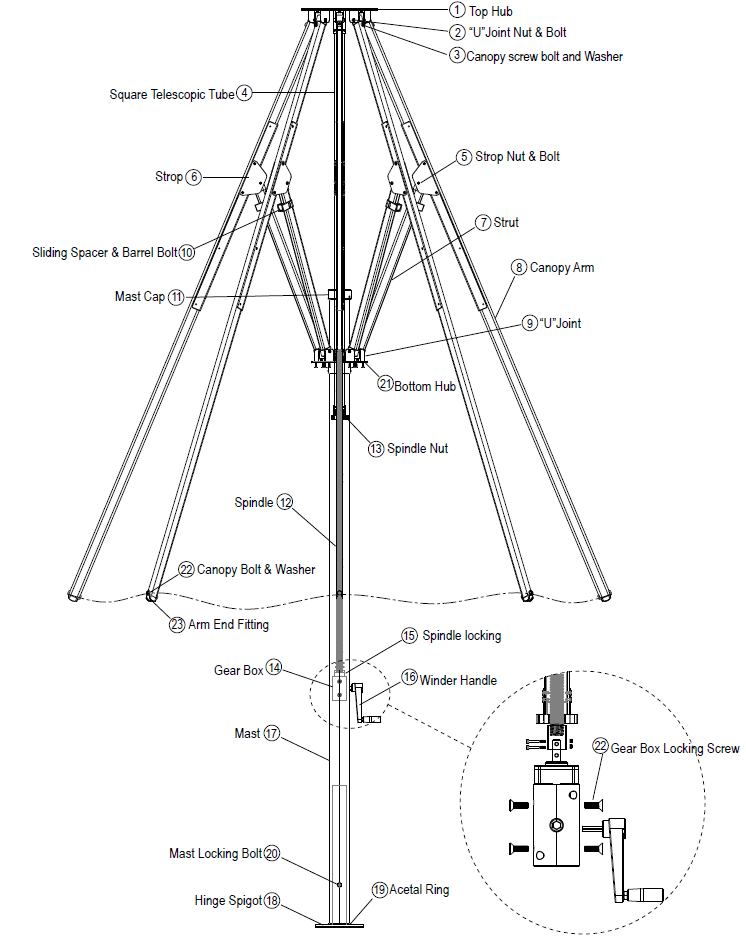

NOVA HD Spare Parts Diagram

When ordering spare parts, please use the allocated Part Number.

​
