Nova HD - Upgrade Of The Nova Gearbox

Nova HD - Upgrade Of The Nova Gearbox

Guide to Upgrade The Nova Gearbox

Due to the mechanical differences in the newer Nova umbrellas the connection from the gearbox to the spindle varies slightly.

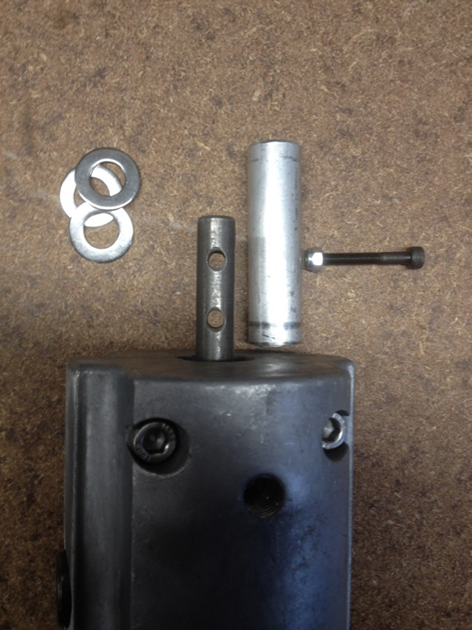

Cutting the cylinder of aluminium supplied to size to act as a spacer will help to strengthen the join between the gearbox shaft and the threaded rod. When finished the end of the threaded rod should rest on top of the cylinder to take some of the weight off of the supplied upgraded high tensile bolts. Please find some extra washers to help get the fit just right. You will only use the upper hole pictured to connect to the threaded rod.
